Wireless weighing scale including drain meter and EC/pH sensor (WM-Drain-WQ)

WM-Drain-WQ

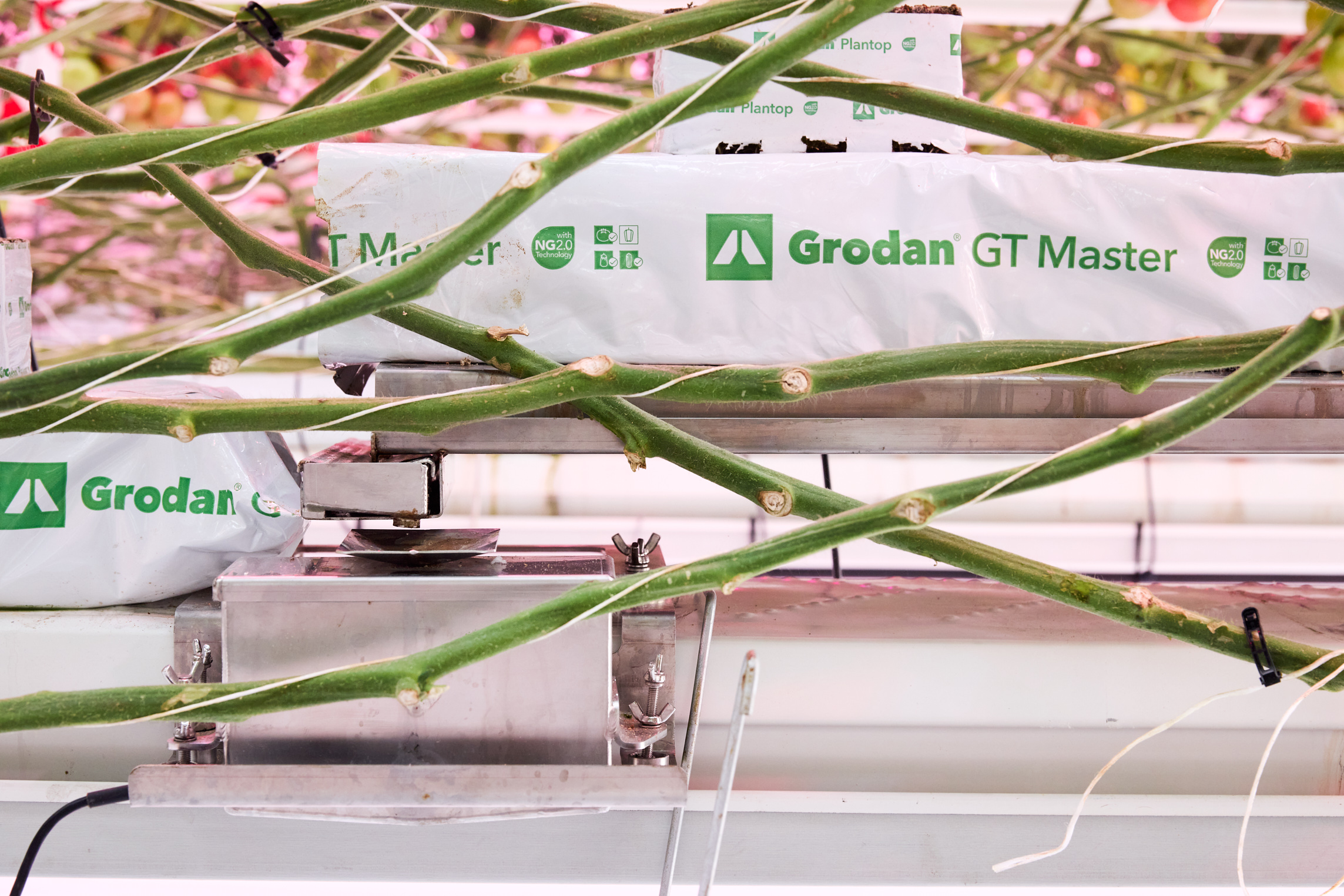

The WM-Drain-WQ is our wireless weighing scale, which allows us to monitor not only the drain but also the quality of the drain water.

This weighing scale is adjustable between 2 metres and 2.7 metres, so it can be adapted to the size of the substrate mats.

The drain meter measures drain in ml per m², which, in combination with the weight measurement, enables us to provide information on the irrigation strategy.

The WQ sensor measures the EC and pH of the drain water before it flows back into the growing trough.

This enables us, in combination with the weighing scale, to provide information and advice on the efficiency of the irrigation strategy, as well as details on water quality.

In combination with the WM-100 load cells, we are also able to calculate water uptake and the daily net weight gain.

• Memory capacity for storing 10,000 measurements
• Adjustable measurement interval
• Suitable for protected fruit and vegetable cultivation and pot plant cultivation
• Existing system can be easily expanded with additional sensors
• User-replaceable battery
• Unique network ID to prevent interference with other wireless systems
